AX8300MAX X-ray Inspection System
Advanced industrial X-ray inspection system engineered for precision analysis of IGBT solder voiding and comprehensive quality verification of electronic components and industrial workpieces.
Applications
This inspection system is extensively deployed for quality verification of semiconductor packaging devices including BGA, CSP, LED and flip chip, automotive electronic components, new energy core parts, aluminum die castings, injection molding plastic assemblies, ceramic structural components and other special industrial workpieces.
Key Features
- Dedicated hardware configurations optimized for precision electronic inspection, delivering ultra-high 5μm detection resolution
- Wide-coverage detection field of view supporting efficient batch inspection and continuous mass production testing
- High-precision dual-rocker mechanical control system for flexible manual positioning operation
- Compatible with standard 2D flaw scanning and 2.5D contour detection functions with expandable interfaces for 3D detection upgrade
- Dual-screen interactive operation design supporting multi-task parallel operation
- Professional AI detection algorithms tailored for intelligent automatic identification of common internal defects
Technical Specifications
| Product Name |
AX8300MAX |
| Dimension |
1286(W)*1540(D)*1700(H)[mm] |
| Machine Weight |
1530kg |
| Power Supply |
220V±10% 50Hz/60Hz 4A |
| Detector |
High resolution FPD |
| Voltage |
110kV |
| Power |
900w |
| Tube Type |
Sealed |
| Max. Power |
25W |
| Detection Area |
129*129[mm] |
| Pixel Matrix |
1536*1536[pixel] |
| Frame Rates |
Max 30fps |
| Geometric Magnification |
47.7X |
Functions and Features
Inspection Images

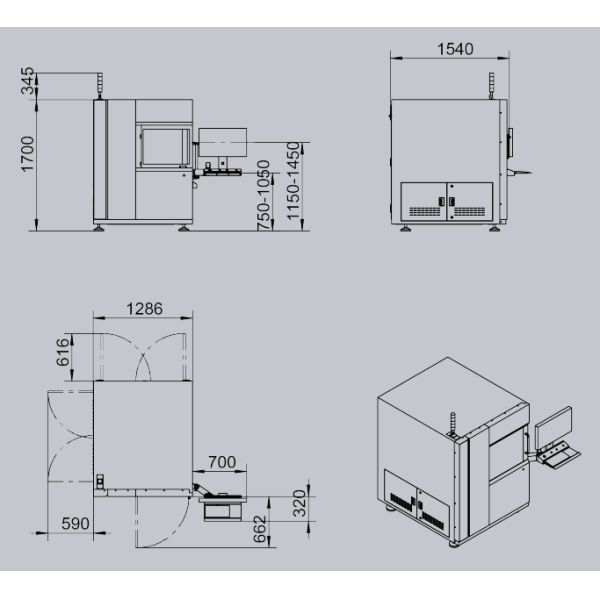

Dimensions and Appearance
Frequently Asked Questions
What's your packaging solution? Will the equipment stay intact during transit?
All X-ray inspection systems are securely packed in standard solid wooden cases to guarantee safe transportation.
What is your warranty policy and after-sales support?
We offer a 1-year warranty covering free spare parts replacement, alongside lifetime technical support. Our dedicated after-sales team is on standby; operation tutorial videos will also be provided to resolve any operational issues.
Can we receive free training if we visit your factory?
Absolutely. You are cordially invited to our manufacturing plant, and we will arrange full free professional training for your team.
