X-Ray Component Counter CX7000L
Count components in seconds, even when packaged in trays, with our advanced X-Ray Component Counter CX7000L.
Technical Specifications
Equipment Features
| Footprint (W*D*H) / Machine Weight | 870 mm*1410 mm*1960 mm / 740 kg |
|---|
| Package | Plywood Case, 1050 cm*1650 cm*2200 cm, Total 920 kg |
|---|
| Power Consumption | 700W |
|---|
| Power Supply | 220V ±10% 50Hz/60Hz 3A |
|---|
System Computer
| Operating System | Industrial PC, Windows11 |
|---|
| RAM CPU Model | 16G/I5 8 generation |
|---|
| Monitor | 27" FHD LCD Display |
|---|
X-Ray Tube
| Max. Voltage | 80 kV |
|---|
| Tube Type | Sealed |
|---|
| Max. Current | 1mA |
|---|
| Focal Spot Size | 0.03 mm |
|---|
Detector
| FPD Detector Pixel Size | 140 μm |
|---|
| Effective Detection Area | 430*430 mm |
|---|
| Pixel Matrix | 3072*3072 |
|---|
| Frame Rates / AD Bits | 2fps / 16 Bit |
|---|
Detection Parameters
| Inspection Tape & Real Size | 7"~17" |
|---|
| Scan height | ≤80mm |
|---|
| Maximum Inspection Speed | 7"~17" Tape & Real is less than 10s/Real, 7"*4 is less than 10s |
|---|
| Inspection Min. Component | 01005 |
|---|
| Inspection Accuracy | ≥99.99% |
|---|
Detectable Components
Capacitors, resistors, inductors, beads, crystals, transistors, diodes, FETs, various types of resistors, bile capacitors, detectable connectors, integrated circuit chips, etc.
Accessories
Barcode Scanning, Printer, Fingerprint Recognition System
Main Configuration
- Bar-code Scanner
- X-ray System
- Label Printer
- Finger Print Recognition System
Key Features
- Automatic inspection, no program switching required for different components
- Fast speed and high accurate chip counting, reducing labor costs
- Non-destructive counting prevents chip damage or loss
- Compatible with 7"~17" tape & reels
- Automatic integration with ERP & MES systems and storage systems
- Shielded cabinet protection ensures X-ray safety
- Fast counting speed: 12~13s/Reel
- Inspection accuracy: ≥99.9%
- Minimum package: 01005
- One-button operation for automatic counting
- Hand-operated label reading with new label printing and sticking
- Special advantage for incoming inspection and inventory management
- Real-time radiation leakage monitoring
Our Services
- Product project analysis and detection solutions
- Free sample detection testing
- Professional detection solutions
- Skilled jig design services
- Shipping/delivery information checking service
- One year guarantee with lifetime maintenance promise
- 24-hour email response time
Frequently Asked Questions
How about the package? Is it safe during delivery?
All X-ray inspection machines are packed in standard strong wooden cartons to ensure safe shipping.
Do you provide warranty? How about after-sales service?
We offer 1-year warranty with free spare parts and lifetime technical support. Our professional after-sales team provides assistance videos and comprehensive support for any questions.
If we visit your factory, will you provide free training?
Yes, we warmly welcome you to visit our factory and will arrange free training sessions.

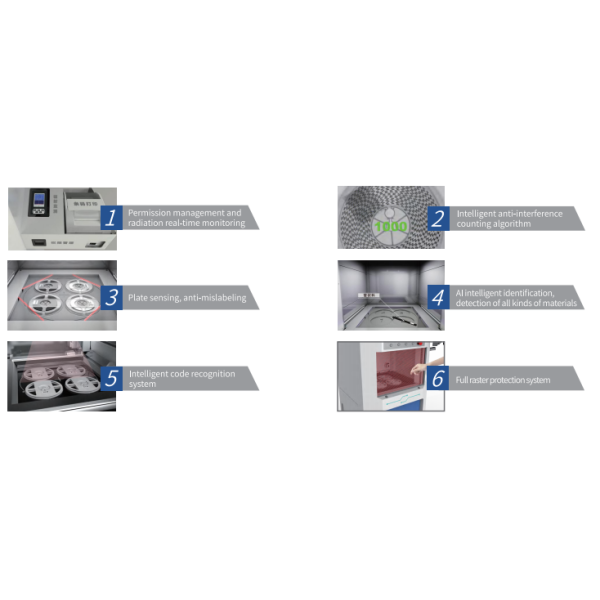

Functional Characteristics

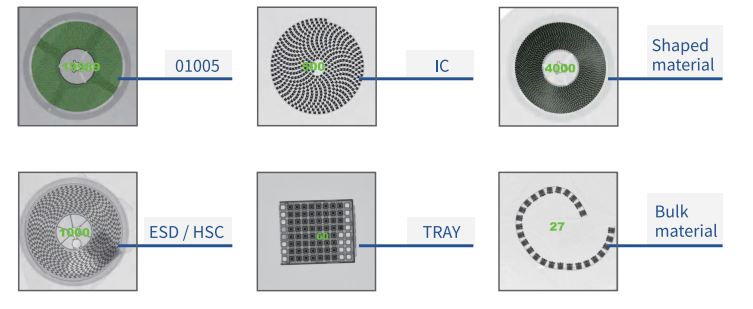

Inspection Images
X-Ray Safety Compliance
All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA-CDRH standard for cabinet x-ray systems states that radiation emission will not exceed 5 millirem/hr at 2" from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times safer than international standards.
