High Resolution X-Ray Inspection for Fish Bones in Frozen Fast Food - UNICOMP UNX4343
UNX4343-HD X-ray fish bone detection system features a 0.099mm high-resolution detector, IP66 rating, and AI deep learning technology. Detects hard, soft, and tiny fish bones in fillets, meat, and surimi products.
Technical Specifications
| Product Name | UNX4343 |
|---|

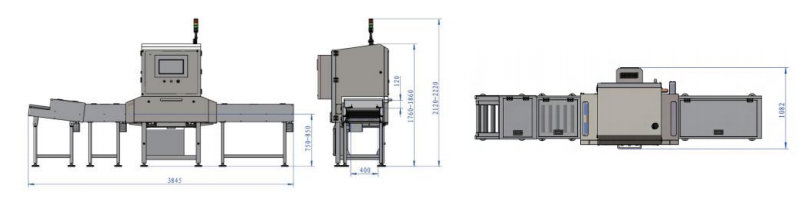

| Dimensions | 3845mm × 1082mm × 2220mm (L×W×H) |
|---|
| Machine Weight | 1000kg |
|---|
| X-ray Source | 80kV 350W |
|---|
| X-ray Detector | 0.099mm |
|---|
| Tunnel Size | W×H = 40×12mm |
|---|
| Belt Speed | 5-30m/min |
|---|
| Radiation Safety | ≤1μSv/h |
|---|
| Belt Material | Food-grade PU |
|---|
| Max Load | 10kg |
|---|
| Protection Rating | IP65 (Tunnel & below) |
|---|
| External Interfaces | 1×LAN, 2×USB |
|---|
| Display Language | Chinese / English |
|---|
| Operating Environment | 5-40°C, RH 30-90%, non-condensing |
|---|
| HMI | 17.3" LCD Touchscreen, Windows 10 |
|---|
| Detection Sensitivity (Empty Belt) | SUS ball ≥φ0.3mm, SUS wire ≥φ0.2×2mm, Glass ball ≥φ1.0mm, Ceramic ball ≥φ1.0mm |
|---|
Key Features & Applications
- Easy Operation & Industrial Design: One-button start/stop with custom product parameters for fast scenario switching. IP66 waterproof and dustproof design adapts to complex food workshop environments.
- High-Precision Foreign Body Detection: HD X-ray imaging system automatically identifies metal, ceramic, glass, bone, and shell contaminants with industry-leading accuracy.
- Flexible Management & Data Statistics: Stepless sensitivity adjustment, intelligent alarm management, complete data statistics, and full-process detection data traceability.
- AI Intelligent Detection Algorithm: Self-developed AI deep learning with strong anti-interference capability reduces false and missing detection rates for stable long-term performance.
- Wide Application Scenarios: Specifically designed for food safety inspection of aquatic products and other food materials, supporting high-speed online detection for automated production lines.
Training & Services
We welcome factory visits and provide free training. Our services include project analysis, detection solutions, free sample testing, professional jig design, shipping information checking, one-year guarantee, lifetime maintenance support, and 24-hour email response.
Frequently Asked Questions
How about the packaging? Is it safe during delivery?
All X-ray inspection machines are packed with standard wooden solid cartons to ensure safe shipping.
Do you provide warranty? How about after-sales service?
1-year warranty for spare parts with lifetime technical support. Our professional after-sales team provides assistance videos and prompt service response.
If we visit your factory, will you provide free training?
Yes, we warmly welcome factory visits and will arrange free training sessions.
Optical Path Diagram
Inspection Images
Application Scenarios
